Unveiling the Mystery

1. A Peek Behind the Electronic Curtain

Ever wondered what happens behind the scenes when you design a circuit board or a complex integrated circuit? It's not just about pretty lines and colorful components. At its heart, there's a crucial document called a netlist. Think of it as the blueprint, the recipe, or even the love letter that tells the manufacturing machine exactly how to connect everything.

So, what does this netlist actually look like? Well, it's not a picture, that's for sure. It's a text-based description, a structured list that details the connections between all the electronic components in your design. Imagine a giant spreadsheet, but instead of numbers, it's filled with component names, pin numbers, and net names (more on those later!). It's like a detailed itinerary for electrons, guiding them on their intended path through the circuit.

Without a netlist, your circuit design is just a pretty picture. The manufacturing process wouldn't know how to physically realize your creation. It's the bridge between the abstract world of design and the concrete world of physical electronics. It's what enables automated processes to take your electronic dream and turn it into reality.

Think of it this way: You wouldn't build a house without a set of architectural plans, would you? The netlist is the architectural plan for your circuit. It defines every connection, every path, and every critical detail needed for a functioning electronic system. Miss a connection here, or mislabel a component there, and you could end up with a very expensive paperweight instead of a working gadget.

Deconstructing the Netlist

2. Anatomy of an Electronic Relationship

Let's break down the netlist into its constituent parts. The three key players are components, pins, and nets. Each plays a vital role in defining the circuit's structure and function.

Components are the individual electronic parts that make up the circuit — resistors, capacitors, integrated circuits (ICs), transistors, and so on. Each component has a unique identifier (often a reference designator like R1, C2, U3) that allows it to be uniquely identified within the netlist. This is basically the component's name tag in the electronic world.

Pins are the connection points on each component. Every component has multiple pins, each serving a specific function (power, ground, input, output, etc.). The netlist specifies which pins of which components are connected together. It's like listing the addresses that need to be connected by roads.

Nets are the electrical connections between the component pins. A net is simply a collection of pins that are electrically connected. Each net has a unique name (like "VCC" for the power supply net, or "Data_Line_1" for a data signal). The netlist specifies which pins belong to which nets. Think of nets as the electronic highways connecting all the components together, allowing signals to travel from one place to another.

Netlist Formats

3. Speaking the Same Language as Your Machines

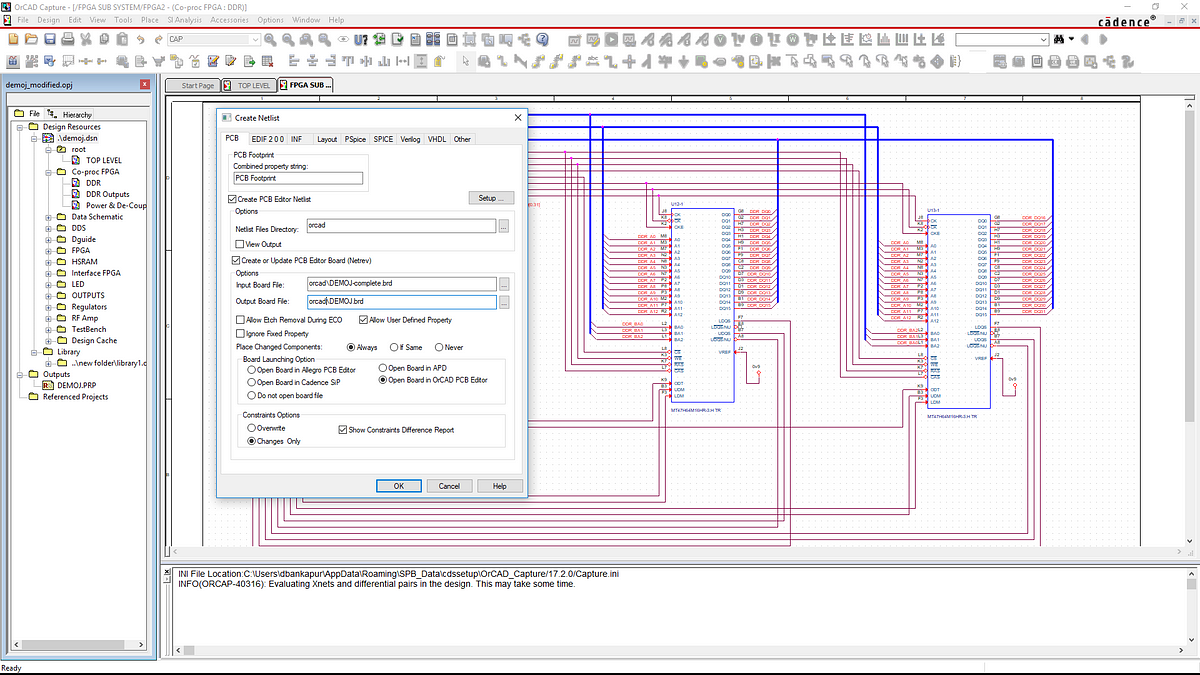

Just like human languages, netlists come in various formats. Each format has its own syntax and conventions, but they all serve the same basic purpose: to describe the circuit's connectivity. Some popular formats include: Spice Netlist: Commonly used for circuit simulation. It's a relatively human-readable format, although it can get quite complex for large circuits. CAD Netlist: Generated by Computer-Aided Design (CAD) tools. There are several CAD netlist formats, such as Allegro, PADS, and OrCAD. IPC-D-356: A standard format for describing printed circuit board (PCB) assemblies. It's widely used in the manufacturing process.

Choosing the right netlist format depends on the specific tools and processes involved in the design and manufacturing workflow. It's essential to ensure that the netlist format is compatible with all the software and equipment used throughout the process.

Imagine trying to order food in a foreign country without knowing the language. You might end up with something completely different from what you expected! Similarly, using the wrong netlist format can lead to errors, delays, and costly rework.

The specific format of the netlist will depend on the software that generated it and the capabilities of the manufacturing equipment. However, the essential information — components, pins, and nets — will always be present, regardless of the format.

Example Time: A Tiny Glimpse Into a Netlist

4. Decoding a Simple Connection

Okay, enough theory! Let's look at a very simplified example. Imagine a simple circuit with a resistor (R1) and an LED (D1) connected in series. The resistor is connected to a 5V power supply (VCC), and the LED is connected to ground (GND). Here's what a snippet of a (very) simplified netlist might look like:

`R1 1 2 100 ; Resistor R1, connected between nodes 1 and 2, value 100 ohms`

`D1 2 0 ; LED D1, connected between nodes 2 and 0`

`VCC 1 ; VCC connected to node 1`

`GND 0 ; GND connected to node 0`

In this example, "1" and "2" are node numbers. Nodes are simply connection points in the circuit. VCC and GND are also nodes. This is a very simplistic representation, of course. Real-world netlists are much more complex, with hundreds or even thousands of components and nets.

Don't worry if this looks like gibberish at first. The key takeaway is that the netlist specifies the components (R1, D1, VCC, GND), their connections (pins or nodes), and their values (100 ohms for the resistor). This information is enough for a machine to understand how to connect the components together.

This example highlights how the netlist breaks down a circuit into its fundamental connections. It removes the visual clutter and focuses on the essential relationships between components.

Why Netlists Matter: From Design to Reality

5. The Unsung Hero of Electronics

Netlists are absolutely crucial in modern electronics manufacturing. They are the backbone of automated processes, enabling efficient and accurate production of complex electronic devices. Without netlists, we'd be stuck hand-wiring everything, which would be slow, expensive, and prone to errors.

The netlist is used for a variety of purposes, including: Circuit Simulation: Verifying the design's functionality before manufacturing. PCB Layout: Creating the physical layout of the circuit board. Automatic Test Equipment (ATE): Testing the assembled circuit board for defects. Bill of Materials (BOM) Generation: Creating a list of all the components needed to build the circuit.

By providing a standardized way to describe circuit connectivity, netlists enable seamless communication between different design and manufacturing tools. They also facilitate collaboration between engineers and technicians, ensuring that everyone is on the same page.

Next time you use your smartphone, your laptop, or any other electronic device, remember the humble netlist. It played a critical role in bringing that device to life. It's the silent architect of the electronic world, working tirelessly behind the scenes to make our lives easier and more connected.

FAQ: Netlist Edition — Your Burning Questions Answered

6. Clearing Up Common Netlist Confusions

Here are some frequently asked questions about netlists, to help you further understand this essential topic:

Q: Is a netlist the same thing as a schematic?
A: No, although they're related. A schematic is a graphical representation of the circuit, while a netlist is a text-based description of the connections. The netlist is usually generated from the schematic.

Q: Can I edit a netlist manually?
A: While you can* technically edit a netlist manually, it's generally not recommended, especially for complex circuits. Manual edits can introduce errors and inconsistencies. It's much safer to modify the schematic and regenerate the netlist.

Q: What happens if there's an error in the netlist?
A: Errors in the netlist can lead to serious problems, such as misconnections, short circuits, and non-functional circuits. It's crucial to verify the netlist carefully before proceeding with manufacturing. Simulation is your friend here! Thorough checking can save you a lot of headaches (and money!).

Q: What's the best software to view netlists?
A: Many CAD software packages include netlist viewers. There are also standalone netlist viewers available. The best choice depends on the specific netlist format and your requirements.
