Understanding the Unsung Hero

1. The Silent Guardian of Your Electrical System

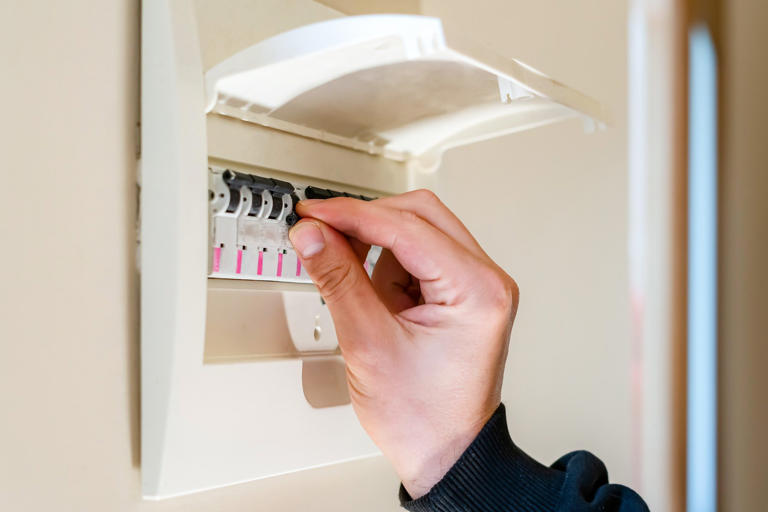

Ever wonder about that little panel in your basement, garage, or hallway? Yeah, the one with all the switches? That's your electrical panel, and those switches are circuit breakers. They might seem unassuming, but they're actually the unsung heroes protecting your home and appliances from electrical mayhem. But exactly, how do circuit breakers work? It's all about preventing overloads and short circuits.

Think of your electrical circuits like highways. They're designed to handle a certain amount of traffic (electricity) flowing through them. When too many cars (appliances) try to use the highway at once, things get congested, right? That's what happens when you overload a circuit. Too much electricity tries to flow through the wires, causing them to overheat. And overheated wires? Well, that's a recipe for disaster — potentially a fire!

Circuit breakers are designed to automatically shut off the flow of electricity when they detect an overload or a short circuit. It's like a tiny, very alert security guard that's constantly monitoring the situation. They are a crucial part of your home's electrical safety system, preventing dangerous situations. So, lets dive deeper into the mechanics behind this essential device.

Essentially, they are more reliable than older style fuses, which melt and break the circuit. Now, we'll explore the inner workings of these crucial devices and understand the key components that contribute to their effectiveness.

The Inner Workings

2. Thermal and Magnetic Trip Mechanisms

Okay, so how do these little lifesavers actually do what they do? There are two main types of mechanisms at play inside most common circuit breakers: thermal and magnetic. Think of them as two different types of sensors, each looking for a specific kind of electrical problem.

The thermal mechanism is like a slow and steady watchman. It relies on a bimetallic strip — that's two different metals bonded together — that heats up when current flows through it. The more current, the more it heats up. When the current exceeds the breaker's rated amperage (the amount it's designed to handle), the bimetallic strip heats up so much that it bends. This bending action triggers a tripping mechanism, which snaps the breaker to the "off" position, cutting off the electricity. It's like the strip is saying, "Whoa, too much! Shut it down!"

The magnetic mechanism is more like a lightning-fast ninja. It's designed to react almost instantly to sudden surges of current, like those caused by a short circuit. A short circuit is when electricity finds an unintended path to ground, often bypassing the intended load (like an appliance). This results in a massive surge of current. The magnetic mechanism uses an electromagnet that gets stronger as the current increases. In a short circuit, the current spikes so high that the electromagnet becomes powerful enough to pull a lever, instantly tripping the breaker. Talk about quick reflexes!

Both of these mechanisms are critical for providing comprehensive protection. The thermal mechanism protects against overloads, while the magnetic mechanism protects against dangerous short circuits. That combination ensures that your electrical system is protected from a wide range of potential problems.

Spotting the Signs

3. Clues That Your Electrical System Needs Attention

A tripped circuit breaker is your electrical system's way of saying, "Hey, something's not right here!" It's important to pay attention to these signals because ignoring them could lead to more serious problems. But how do you know when a circuit breaker has tripped? It's usually pretty obvious — the switch will be in the "off" or "middle" position (between "on" and "off").

But what causes a circuit breaker to trip? As we discussed earlier, overloads and short circuits are the main culprits. An overload happens when you're drawing too much power from a single circuit. This could be because you have too many appliances plugged into the same outlet or using a high-wattage appliance on a circuit that isn't designed for it. Think about running a hair dryer, microwave, and space heater all on the same circuit — that's a recipe for an overload!

A short circuit, on the other hand, is a more serious problem. It usually involves damaged wiring or a faulty appliance. If a wire gets frayed and touches a metal object, for example, it can create a short circuit. Short circuits can also occur inside appliances. When a breaker trips frequently, particularly soon after being reset, its a potential sign of a more significant issue.

If a circuit breaker trips frequently, it's time to investigate. Try unplugging some appliances from that circuit to see if that solves the problem. If the breaker continues to trip, or if you suspect a short circuit, it's best to call a qualified electrician. They can diagnose the problem and make the necessary repairs.

Resetting a Tripped Breaker

4. Steps to Restore Power Safely

Okay, so you've identified a tripped circuit breaker. Now what? Resetting it is usually a pretty simple task, but it's important to do it safely. First, make sure your hands are dry and you're standing on a dry surface. Water and electricity don't mix, so it's always better to be cautious.

Next, locate the tripped breaker. It will be in the "off" or "middle" position. To reset it, first push the switch all the way to the "off" position. This ensures that the breaker is fully reset. Then, push the switch all the way to the "on" position. You should hear a click as the breaker resets.

Now, check to see if the power has been restored to the circuit. If the breaker trips again immediately after you reset it, don't keep trying to reset it. There's likely a more serious problem that needs to be addressed. It's time to call an electrician.

Before resetting, it is a good idea to unplug some of the items on the circuit. If the breaker continues to trip frequently, it indicates that there may be a more persistent problem, such as faulty wiring or an overloaded circuit, which requires the attention of a qualified electrician. Also, remember, if you're ever unsure about anything electrical, it's always best to err on the side of caution and call a professional.

Circuit Breaker Maintenance

5. Preventive Measures for Long-Term Reliability

While circuit breakers are generally reliable devices, they do require some basic maintenance to ensure they're functioning properly. One of the most important things you can do is to periodically inspect your electrical panel for any signs of damage or corrosion. Look for rust, cracks, or loose wires. If you see anything that looks suspicious, call an electrician.

It's also a good idea to test your circuit breakers periodically. Most modern circuit breakers have a test button that you can push to simulate a fault condition. When you push the test button, the breaker should trip, cutting off the power to the circuit. If the breaker doesn't trip when you push the test button, it may be faulty and need to be replaced. Testing annually is recommended.

Another important aspect of circuit breaker maintenance is to avoid overloading circuits. Be mindful of the amount of power you're drawing from each circuit. Don't plug too many appliances into the same outlet, and avoid using high-wattage appliances on circuits that aren't designed for them.

By taking these simple steps, you can help ensure that your circuit breakers are working properly and protecting your home from electrical hazards. Regular maintenance and a little bit of awareness can go a long way in keeping your electrical system safe and reliable.

FAQ

6. Your Burning Questions Answered

We get it — electrical stuff can be a little confusing! Here are some frequently asked questions to help clear things up:

Q: What's the difference between a circuit breaker and a fuse?
A: Both circuit breakers and fuses protect your electrical system from overloads and short circuits, but they work in slightly different ways. A fuse contains a thin strip of metal that melts and breaks the circuit when too much current flows through it. A circuit breaker, on the other hand, is a reusable switch that trips and cuts off the power. Once a fuse blows, it needs to be replaced. A circuit breaker can be reset.

Q: How do I know what size circuit breaker I need?
A: The size of a circuit breaker is measured in amps (amperes). The correct size for a circuit breaker depends on the size of the wires in the circuit and the type of appliances that will be using the circuit. It's important to use the correct size circuit breaker to ensure that the circuit is properly protected. If you're not sure what size circuit breaker you need, consult with a qualified electrician.

Q: Can I replace a circuit breaker myself?
A: While it's technically possible to replace a circuit breaker yourself, it's generally not recommended unless you have experience working with electricity. Working with electrical systems can be dangerous, and it's important to take proper safety precautions. If you're not comfortable working with electricity, it's best to call a qualified electrician to replace the circuit breaker.

Q: Why does my circuit breaker keep tripping even after I reset it?
A: If a circuit breaker trips repeatedly, it indicates that there is an ongoing issue. Possible causes include an overloaded circuit due to too many devices drawing power, a short circuit caused by damaged wiring or a faulty appliance, or a ground fault where electricity is leaking to ground. Each of these scenarios can trigger the safety mechanism of the circuit breaker, causing it to trip to prevent damage or fire. It is essential to have an electrician assess the problem to identify the specific cause and carry out necessary repairs.
